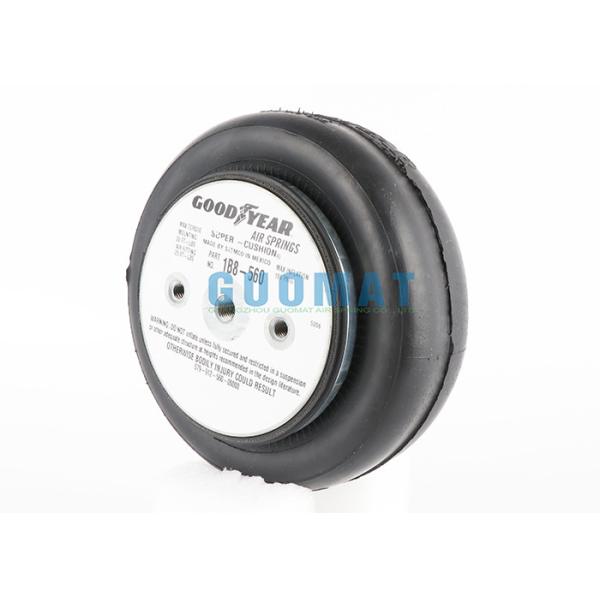

Goodyear 1B8-560 Convoluted Air Spring 579-91-3-532 Industrial Bellows Actuator
Product Description
The Goodyear 1B8-560 is an industrial air spring with a single convoluted bellows. It is used in various applications, such as air actuators and air suspension systems. The Goodyear 1B8-560 is known for its high quality and durability
GOODYEAR Part Number 1B8-560
GOODYEAR Part Number 1B 8-560
GOODYEAR Part Number 1B8 560
GOODYEAR Part Number 1B 8 560
GOODYEAR Part Number 1B8560
GOODYEAR Part Number 1B 8560
GOODYEAR Part Number 579913532
GOODYEAR Part Number 579 91 3 532
GOODYEAR Part Number 579-91-3-532
OEM Number
Firestone Bellow Type: 116-1
Firestone Air Spring: W013587598
Firestone Air Spring: W01 358 7598
Firestone Air Spring: W01-358-7598
Firestone Air Spring: WO13587598
Firestone Air Spring: WO1 358 7598
Firestone Air Spring: WO1-358-7598
Enidine Air Spring: YI-1B8-560
Enidine Air Spring: YI 1B8 560
Enidine Air Spring: YI1B8560
Technical Data: Goodyear 1B8-560
5.0'' Cover Plate Diamater
9.4'' Max O.D At 100 PSIG
6.7'' Max Extended Height
2.3'' Bumper Contact Height
2.0'' Compressed Height
With Optional Bumper
Goodyear Refer to Firestone
| Goodyear No. | Firestone No. | Firestone Type |
| 1B7-540 | W01-358-7451 | 110 |
| 1B14-350 | W01-358-7103 | 113 |
| 1B14-351 | W01-358-7104 | 113 |
| 1B14-352 | W01-358-7101 | 113 |
| 1B14-353 | W01-358-7109 | 113 |
| 1B14-358 | W01-358-7112 | 113-1 |
| 1B9-208 | W01-358-7458 | 115 |
| 1B9-201 | W01-358-7459 | 115 |
| 1B9-200 | W01-358-7460 | 115 |
| 1B9-202 | W01-358-7460 | 115 |
| 1B9-207 | W01-358-7465 | 115 |
| 1B8-550 | W01-358-7564 | 116 |
| 1B6-530 | W01-358-7731 | 131 |
| 1B5-500 | W01-358-5000 | 16-ST |
| 1B12-305 | W01-358-6920 | 19 |
| 1B12-301 | W01-358-7009 | 19 |
| 1B12-305 | W01-358-7008 | 19 |
| 1B12-301 | W01-358-7039 | 19-75 |
| 1B12-300 | W01-358-7040 | 19-75 |
| 1B12-304 | W01-358-7042 | 19-75 |
| 1B12-305 | W01-358-7043 | 19-75 |
