High Quality Continental Contitech Single Convoluted Air Spring FS120-9 For Industrial Equipment
Product Description
Item Name: Industrial Air Spring
Model No.: 1B1209
Material: Natural Rubber and High Quality Steel
Warranty: 12 Months
MOQ: 10 Pieces
Color: Black
Bellow Type: Single Convoluted
Technical Data
| Part Number | 1B1209 |
| OEM Number | Contitech FS120-9 |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
| Top Cover Plate Diameter | 135mm |
| Bottom Cover Plate Diameter | 135mm |
| Gas Hole / Air inlet | G3/4 ; G1/4 |
| Rubber Bellows MAX Diameter | 215mm |
| The Working Stroke | 50mm-115mm |
| Top Cover Plate Screw (Nut) Tooth | 2XM8X1.25 |
| Bottom Cover Plate Screw (Nut) Tooth | 2XM8X1.25 |
| Screw Center Distance of Top Cover Plate | 70mm |
| Screw Center Distance of Bottom Cover Plate | 70mm |
| Min.pressure 0 bar |
| Return force to min.height ≤200N |
| Overall weight with clamped plates 2.0kg |
Cross Reference Number
GUOMAT Number : 1B1209
Air Hole : G3/4
Firestone : W01-M58-6165
Contitech : FS120-9
Dunlop(FR) : 8''X1
Dunlop(FR) : S08101
Bosch : 822419003
Festo : EB-215-80
Norgren : PM/31081
Norgren : 8x1
Weforma : WBE 300-E1
Airtech : 140293
Airtech : 111003
Airtech : 1B-190FB
Megatech : 1S120-9 3/4 M8
GUOMAT Number : 1B1209-D
Air Hole : G1/4
Firestone : W01-M58-6166
Contitech : FS120-9
Dunlop(FR) : 8''X1
Dunlop(FR) : S08100
Bosch : 822419008
Weforma : WBE 300-E2
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.

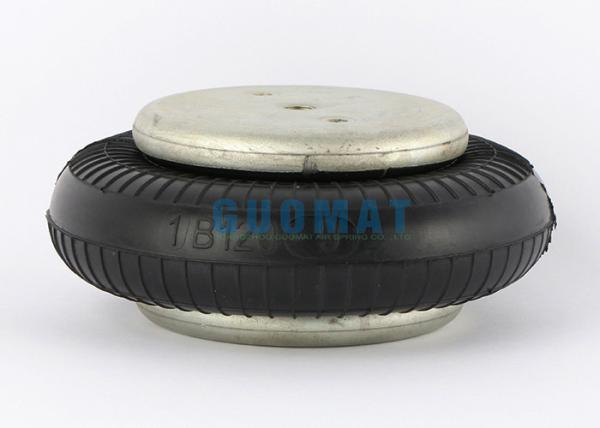

Real Pictures of FS 120-9 Contitech Air Spring
